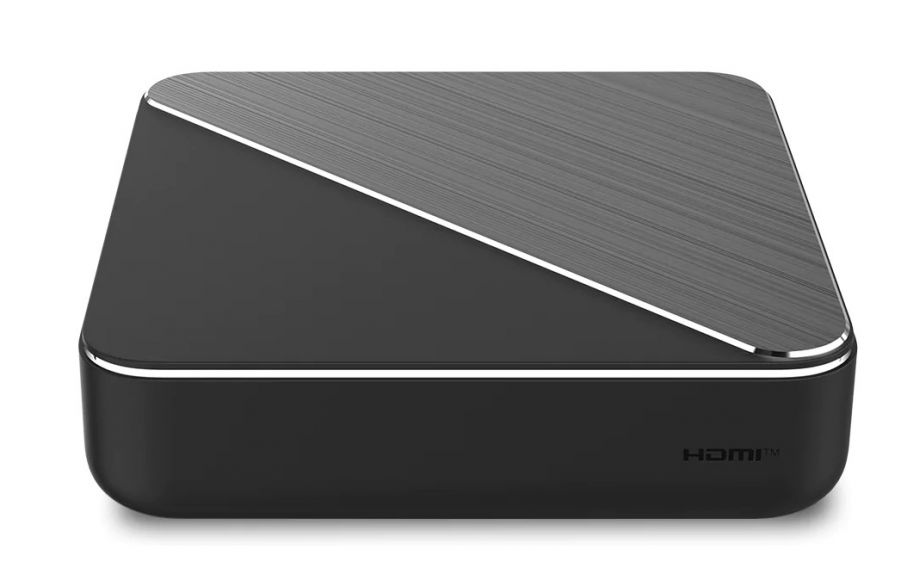

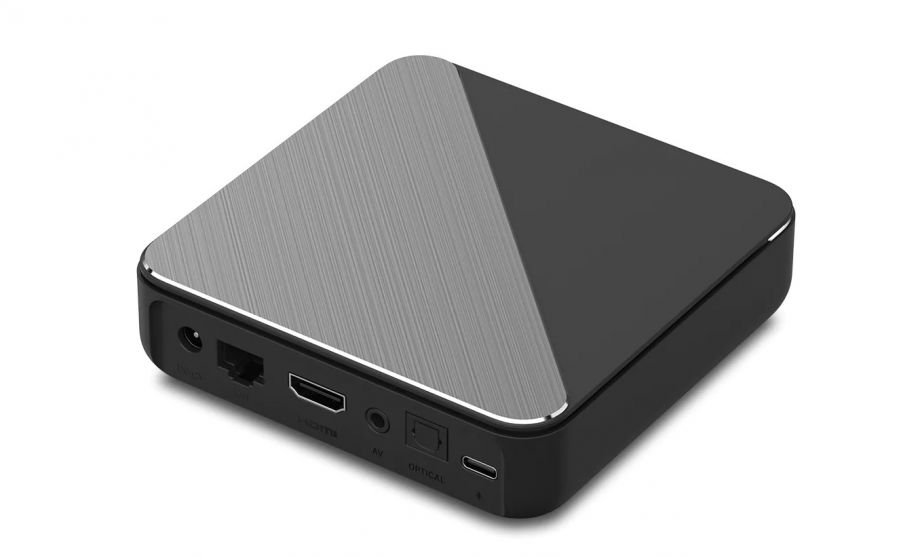

Mediplayer Dune HD Homatics Box R 4K Plus

Uztvērēji » Multimediju TV konsoles


Mediplayer Dune HD Homatics Box R 4K Plus

Media processor: Amlogic S905X4-K with Dolby Vision, Dolby Atmos, DTS licenses

CPU: ARM Cortex A55 4-core

Operating memory: 4 GB

Flash memory: 32 GB

Ethernet: 10/100/1000 Mbit/s

Wi-Fi: 802.11b/g/n/ac/ax (Wi-Fi 6), Dual Band 2.4+5 GHz, 2T2R

Bluetooth: 5.0

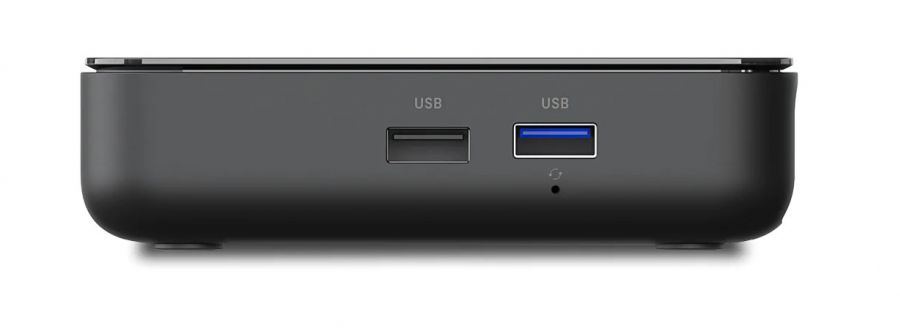

USB ports: 1x USB 3.0 + 1x USB 2.0

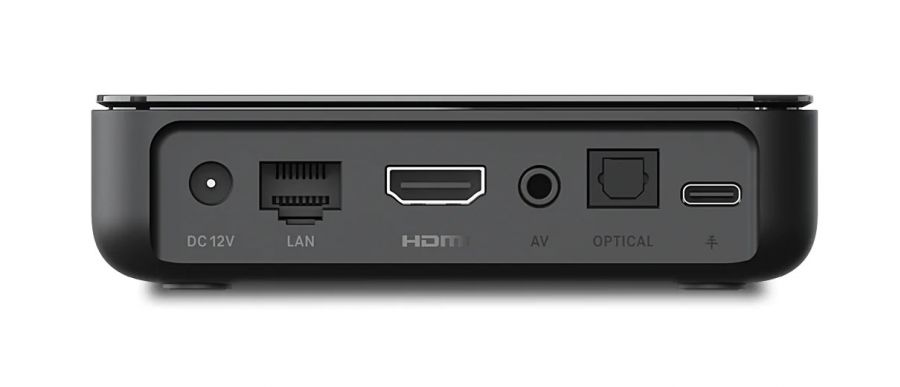

HDMI output: HDMI 2.1 up to 4Kp60 HDR / HDR10+ / Dolby Vision, HDCP 2.2

Analog A/V output: 3.5mm minijack (composite video + stereo audio)

S/PDIF output: Optical S/PDIF

Reserved port: For potential extensions (DVB-T/T2/C tuner)

Power input: 12V DC IN (1.5A)

Power supply: External, DC 12V (1.5A), AC 100-240V

Case: Plastic

Dimensions (W x H x D): 114mm x 28mm x 114mm

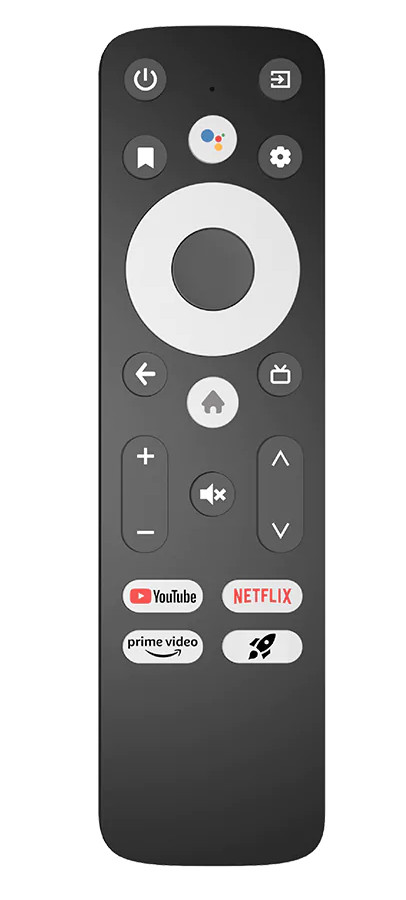

Remote: Bluetooth remote with microphone (voice search) and programmable app button. The remote also has IR emitter and can control TVs and A/V receivers via IR channel, and also control the media player via IR channel (when there is no Bluetooth connection to the media player) (using Google IR codes)

IR control: Built-in IR receiver, supports Google IR codes only (Note: because of certified Android TV solution, Dune HD IR codes are not supported)


OS: Android TV 11.0 + Linux-based Dune HD OS (available via app *)

Netlix certification: Yes

Google Android TV certification: Yes

Widevine DRM: Widevine L1

Streaming services: Netflix, Amazon Prime Video, Disney+, Apple TV+, HBO Max, YouTube and many others (includes all services available via Android TV apps in Google Play Store) (depends on region and policies of particular services)

Filesystems: FAT16/FAT32 (read-write), exFAT (read-write), NTFS (read-only)

Video decoding: AV1, VP9 profile 2, H.265 (HEVC), H.264 (AVC), VC1, MPEG4, MPEG2, MPEG1

Video upscaling: Upscaling of SD and other resolutions up to 4K

3D video: Side-by-Side, Top-and-Bottom

Audio in streaming services: Up to Dolby Atmos (depends on a particular streaming service)

Audio in Dune HD media center: Most popular formats can be played, up to Dolby TrueHD with Atmos and DTS X, multichannel FLAC and multichannel SACD (DSD); see Dune HD media center specifications for more details


Dune HD Media Center specifications


Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, ISO, movie folder structures

Dolby Vision playback: Profiles 5, 7 (MEL and FEL), 8; various containers (ISO, movie folder structure, MKV, MP4, M2TS); DTDL (double-track double-layer), STDL (single-track double-layer), STSL (single-track single-layer). Double-track/double-layer video (profile 7 MEL, profile 7 FEL) is played with the use of data from both tracks/layers: video data from the first track/layer (with 10-bit color depth - the maximum color depth supported by OLED-panels in OLED TVs), extended Dolby Vision information (RPU metadata) from the second track/layer

Automatic framerate and resolution switching: yes

Audio decoding: MPEG-1/2 layer I/II/III, AAC, LPCM, FLAC, multichannel FLAC, Vorbis, WavPack, APE (Monkey's Audio), ALAC (Apple lossless), SACD DSD (stereo and multichannel), multichannel PCM (up to 7.1), Dolby and DTS formats

Dolby and DTS formats: Audio tracks in the following Dolby and DTS formats can be played: Dolby Digital, Dolby Digital Plus, Dolby Digital Plus with Atmos, Dolby TrueHD, Dolby TrueHD with Atmos, DTS, DTS HD HRA, DTS HD MA, DTS X. All formats can be decoded by the media player and output to HDMI as multichannel uncompressed PCM (up to 7.1 channels, 48KHz). The following formats can be output as a bitstream: Dolby Digital, Dolby Digital Plus, Dolby Digital Plus with Atmos, Dolby TrueHD, Dolby TrueHD with Atmos, DTS. Dolby formats can also be output as multichannel-audio using Dolby MAT technology (multichannel PCM with Atmos) when the receiver supports it

Audio file formats: MP3, MPA, M4A, AAC, WAV, FLAC, Ogg/Vorbis, WavPack, APE (Monkey's Audio), ALAC (Apple lossless), SACD ISO (stereo and multichannel), SACD DSF (stereo and multichannel), SACD DFF (stereo and multichannel), AC3, DTS, DTS-WAV

Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (ISO, TS, MKV)

Online subtitles: Automatically download subtitles from Internet

Picture file formats: JPEG, PNG, BMP

Photo viewer functions: Slideshow, transition effects, picture rotation, zoom, view playlist, repeat, shuffle

Playlist file formats: M3U, PLS, CUE

Playlist functions: Build playlist from selected folders and files, build playlist from selected playlist files, view playlist file, view current playlist, quickly jump to next/previous or selected playlist item, repeat, shuffle, playlist of photo files, playlist of audio files, playlist of video files, mixed playlist of audio and video files

NFS client: Browse NFS servers/shares, manually connect to NFS share, directly access and play files

SMB client: Browse SMB servers/shares, manually connect to SMB share, directly access and play files

SMB server: Share local storage devices and internal memory

iOS and Android mobile apps: Control Dune HD media center via the powerful Dune Control mobile application

IP control: Integrate Dune HD media center into Home Automation systems via IP Control interface

Control4 and Crestron: Integrate Dune HD media center into Smart Home installations based on Control4 and Crestron technologies

Android TV specifics: Because of certified Android TV solution, some functions work with some specifics and limitations. In particular, due to security requirements, all network functions (such as: SMB server, IP control, NFS client) use so-called "non-privileged" ports. This imposes some restrictions on the use of these functions. For more details please see

* To use Dune HD media center functions, an app should be installed. The app is under development. Some of the listed features will become available in future app versions. See here for more details about the current app status and updates:
